Black Box vs White Box Testing: 2025 Comparison Guide

• Core difference:
  • Black box testing: External view no access to source code; tests inputs, outputs, and user-facing behavior.
  • White box testing: Internal view full access to code, architecture, and logic; ensures deep coverage and structural integrity.
• Strengths:
  • Black box: User-centric, easy to perform, realistic attack simulation.
  • White box: Early bug detection, higher code coverage, supports secure development.
• Limitations:
  • Black box: May miss hidden code paths or internal logic flaws.
  • White box: Requires developer-level expertise and can be resource-intensive.
• Middle ground: Grey box testing combines both partial knowledge for efficiency and realism.
• Best practice: Use both black and white box approaches together for comprehensive testing of functionality, security, and code quality.

In today’s complex software landscape microservices, cloud, remote work, relying on one testing approach is risky. Security teams and QA engineers must understand the black box vs white box difference to choose the right method.

This is crucial for effective penetration testing and compliance with standards e.g. NIST, SOC 2, ISO 27001. We’ll define each approach, compare them side by side with a handy table, discuss advantages/disadvantages, and provide real world guidance on when and how to use each technique.

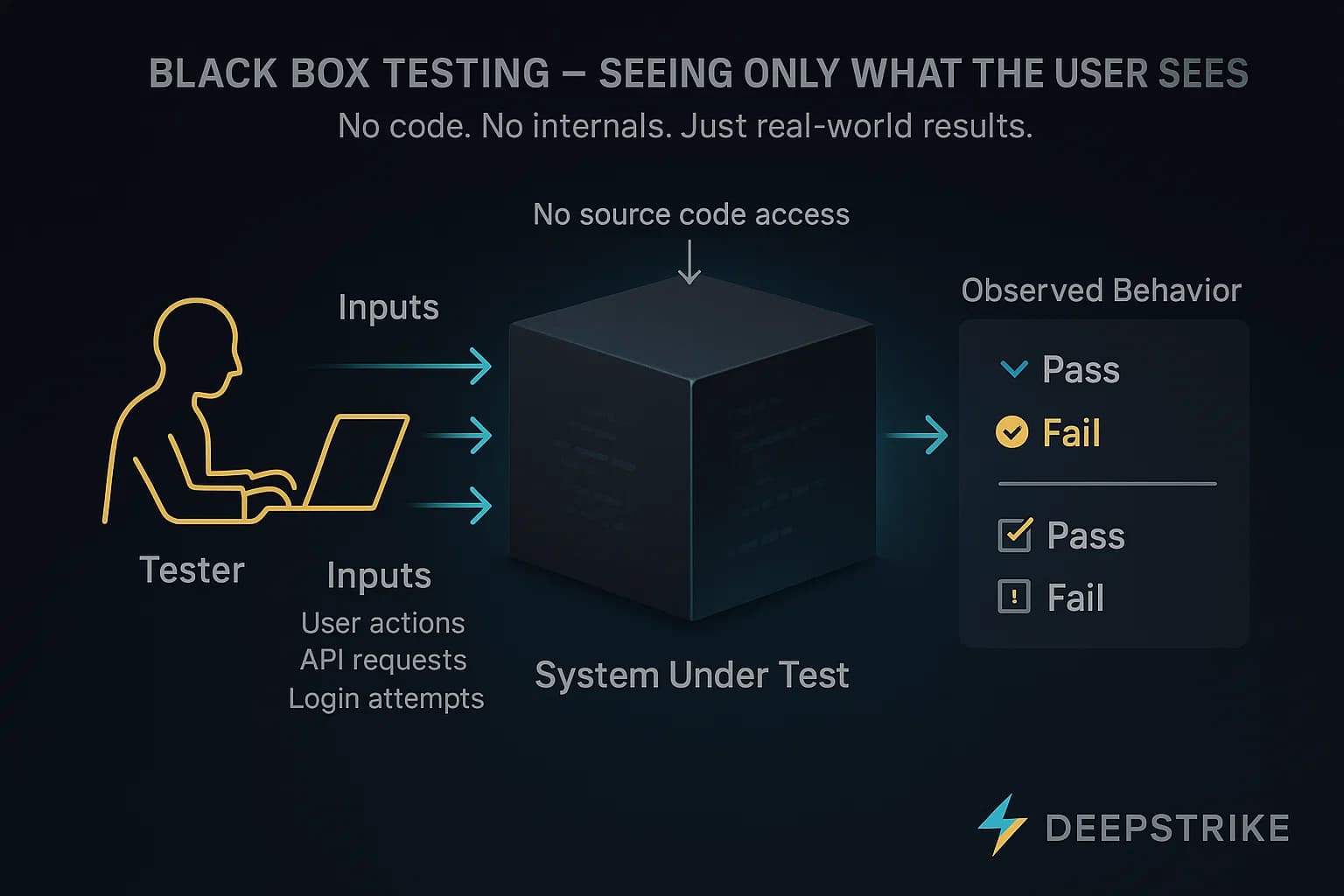

What is Black Box Testing?

Black box testing treats the system as a black box: the tester has no knowledge of the internal code or structure and evaluates functionality purely based on inputs and expected outputs. Test cases come from requirements, user stories or specifications.

In practice, a QA engineer or pentester runs the application or API with various inputs and checks the results against expected behavior. For example, testers might input valid/invalid login credentials to verify the authentication workflow, without seeing the source code. Common techniques include functional testing, regression testing, and usability testing.

This approach simulates a real user or external attacker who only sees the public interfaces of an application. It is widely used in system and acceptance testing, as well as automated UI and API tests. Penetration testers performing a black box pentest try to breach the system with no insider information.

Because testers don’t need programming knowledge, a broader range of people can perform black box tests. However, black box testing only covers what the system does, not how it does it. Hidden bugs, untested branches, or security flaws in the code can go undetected.

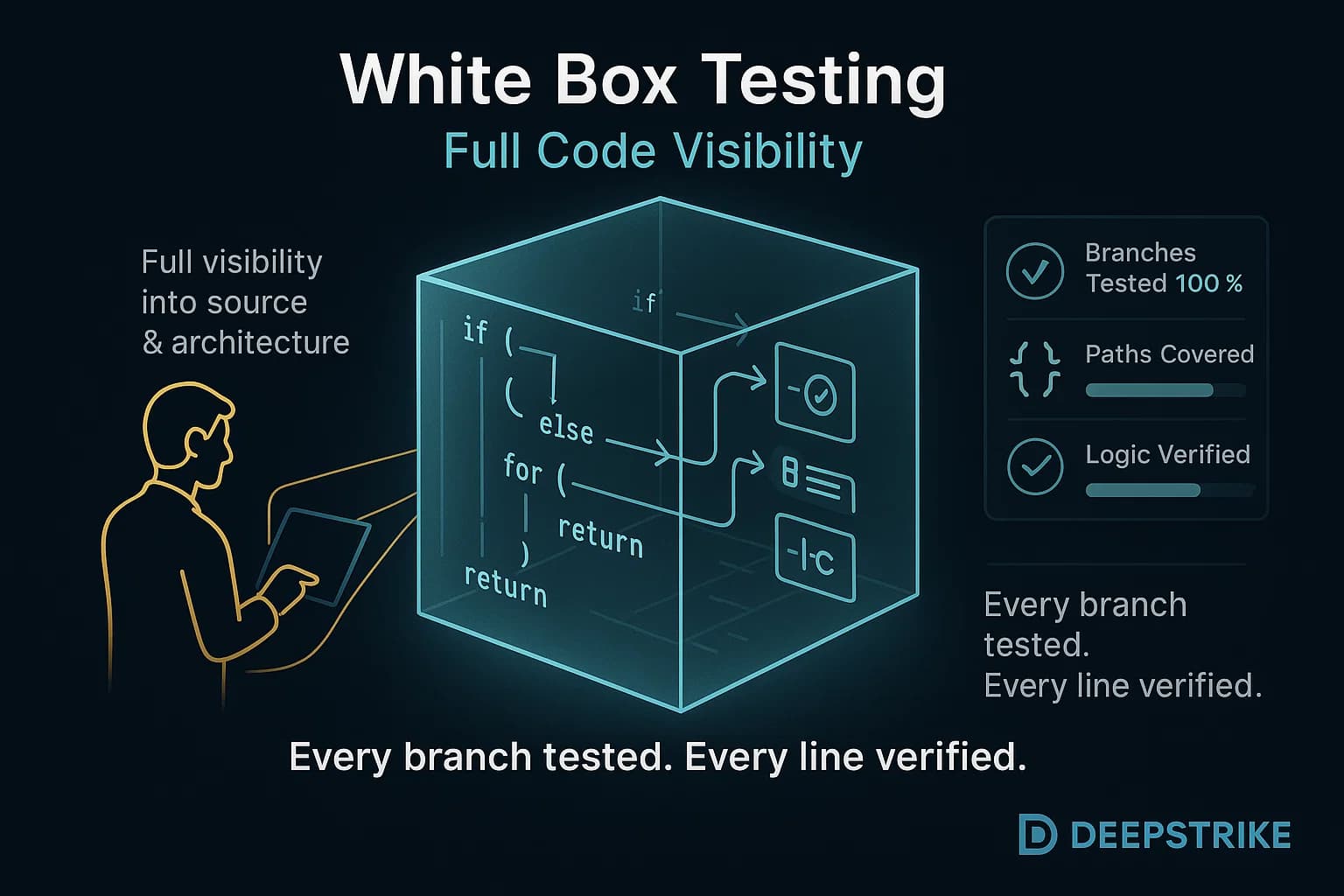

What is White Box Testing?

White box testing also called clear/transparent box testing assumes full access to the internal code and architecture. Testers often developers or specialized QA engineers design tests based on the source code, control flow, and data paths.

The goal is to exercise every branch, loop, and condition in the code. For instance, a white box test might ensure each if statement and every possible code path is executed at least once. Common activities include unit tests, integration tests, and static code analysis.

Since white box testers see the inner workings, they can find issues that would be invisible in black box tests for example, dead code, hidden logic bugs, or poor error handling. This leads to comprehensive coverage testers can write cases to trigger each statement and branch. In security, white box testing such as source code review or static analysis can uncover vulnerabilities like insecure input handling before the software even runs. On the downside, white box testing requires skilled engineers familiar with the codebase, and writing exhaustive tests is time consuming and costly.

Example of White Box Testing: Inspecting source code to design test cases. White box testing thoroughly examines internal logic credit: L. Gomes via Pexels.

Black Box vs White Box: Key Differences

The table below highlights the main contrasts between black box and white box testing:

Why It Matters in 2025

In 2025 and beyond, software ecosystems are more complex and interconnected than ever. Cloud based microservices, remote work tools, and AI components mean security flaws can hide in code or emerge at interfaces. Using both black and white box testing strengthens your defense:

• Comprehensive Coverage: White box methods ensure code is sound, while black box tests confirm the software works correctly from the user’s viewpoint.
• Regulatory Compliance: Standards like ISO 27001, SOC 2 A.12.6.1, PCI DSS 11.3, HIPAA and FedRAMP recommend both code level reviews and external testing. For example, see our guides on SOC 2 penetration testing requirements and PCI DSS 11.3 penetration testing guide for mandates that encourage mixed testing approaches.
• Evolving Threats: Modern attackers exploit both code vulnerabilities and logic flaws. Gray box testing providing limited info is emerging as a best practice to simulate insider attacks.
• DevSecOps Integration: White box testing like automated unit tests can be integrated into CI/CD for early bug detection, while black box fuzzing or automated scanners continuously probe running apps. For example, continuous penetration testing platform solutions combine both in real time.
• Business Risks: A black box pentest in 2023 by DeepStrike uncovered an API bug that allowed a full account takeover in HubSpot. This user facing exploit likely would have been missed without simulating a real attacker. Conversely, code reviews at the development stage found subtle logic flaws that pre-emptively blocked a potential breach.

Combining both styles answers the key question: What could an attacker do, and does our code even have those flaws? Balancing external and internal views is essential for a resilient security posture.

Advantages and Disadvantages

Both approaches have strengths and trade offs. Understanding them helps pick the right tool for each job:

• Black Box Testing Pros:
  • No coding expertise needed: Anyone who understands the requirements can execute tests. This allows dedicated QA teams or third party testers, even ethical hackers, to assess security without developer bias.
  • User centric: Tests reflect real user scenarios login, data entry, API calls, improving usability and uncovering specification gaps. This often leads to better UX and requirement validation.
  • Reproducibility and Scalability: Test cases based on specs are easy to repeat and automate e.g., GUI or API test suites. You can run the same scripts across environments, making regression testing straightforward.
  • Independent perspective: Simulates an outsider attack, which is useful for final acceptance and real world attack simulations.
• Black Box Testing Cons:
  • Limited coverage: Without seeing the code, testers can’t be sure all branches ran. Hidden defects in untested code paths may slip through.
  • Needs good specs: Effective tests require clear requirements or user stories. Ambiguous or missing specs make test case design hard, possibly leading to missed scenarios.
  • Inefficiency: Finding the right inputs by trial and error can be time consuming. Testers may produce many redundant tests or overlook edge cases, wasting resources.
  • Debugging effort: When a black box test fails, diagnosing the root cause is harder without code. You might need a white box review to fix it.
• White Box Testing Pros:
  • Thoroughness: Can cover all code paths, branches and conditions, leading to high defect detection rates. Early code level errors, logic bugs, unreachable code are uncovered before release.
  • Security and Optimization: Helps spot security weaknesses, buffer overflows, incorrect sanitization and redundant or dead code. This fosters code optimization and higher quality.
  • Early detection: Because it’s done during development unit testing, bugs are found sooner, reducing cost of fixing them.
  • Integrates with DevOps: Automated tests and static analyzers can run on each build, giving continuous feedback to developers.
• White Box Testing Cons:
  • Requires expertise: Testers need programming skills and design knowledge, making it harder to find personnel. It's often done by developers or highly skilled testers.
  • Time consuming: Writing exhaustive tests for every path is labor intensive. Projects with limited timelines may skip thorough white box testing.
  • Costly: The detailed analysis can be expensive, especially for large codebases or when using advanced tools.
  • Can miss user level flaws: Focusing on code logic may overlook usability or integration issues that matter to end users e.g., a workflow flaw not apparent in code.
  • Maintenance: White box tests break easily when code changes, requiring constant updates to the test suite especially if code refactoring occurs.

In practice, mixing them mitigates weaknesses, for example, a security team may start with a white box code review static analysis to clear obvious issues, then perform a black box pentest to find any flaws remaining at the external interface.

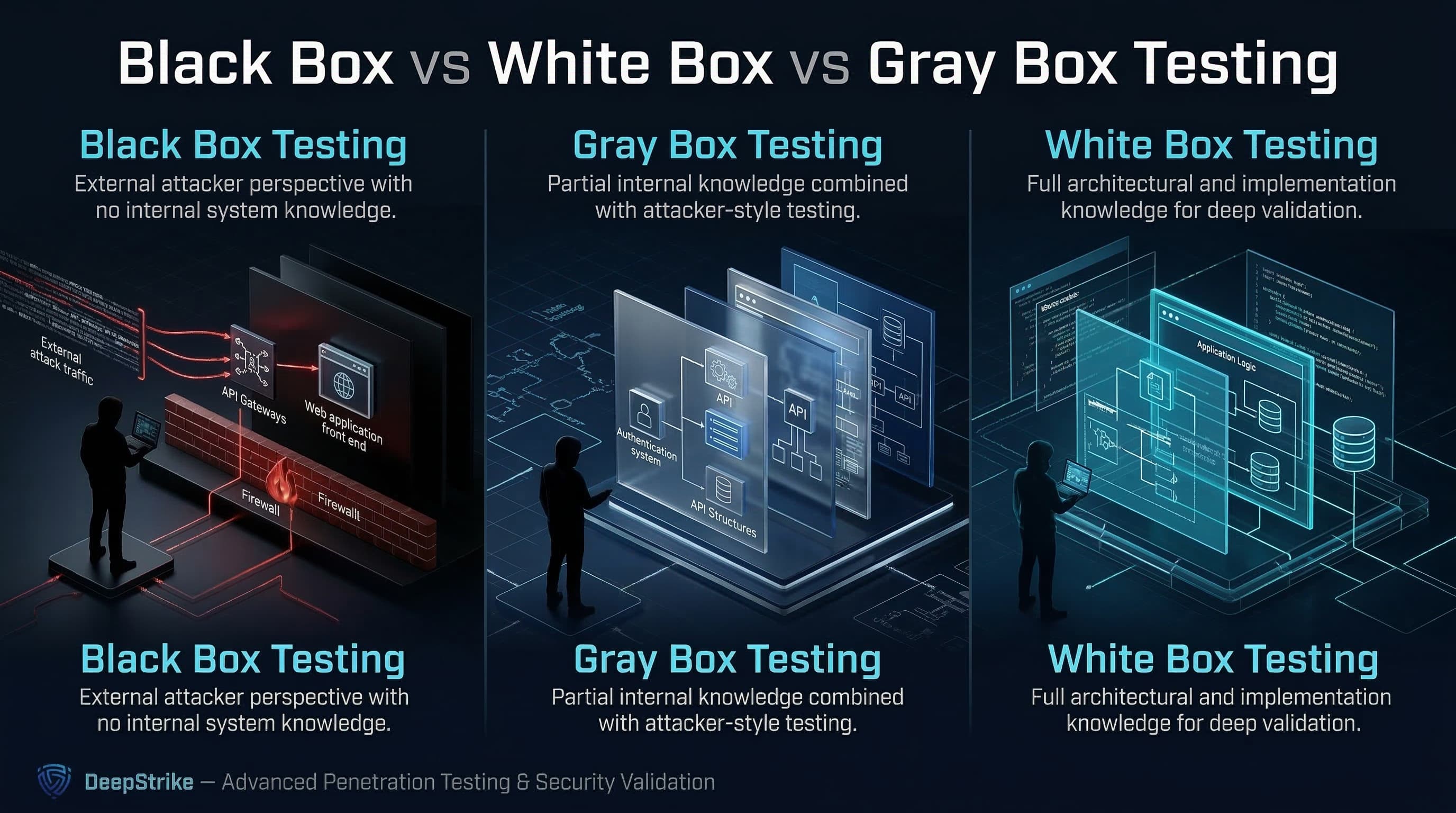

Grey Box Testing: A Balanced Approach

Grey box testing sits between black and white box. Testers receive partial knowledge e.g. architecture diagrams or user credentials to focus their efforts. For instance, providing login credentials lets testers bypass initial reconnaissance and concentrate on post login functionality. Grey box testing simulates a privileged user or insider scenario. It achieves a compromise, more efficient than black box, less time guessing and more realistic than pure white box still tests real authentication/authorization flows. According to Redscan, grey box is often the preferred balance between efficiency and authenticity. Use grey box tests when you want both domain knowledge and realistic attack simulation.

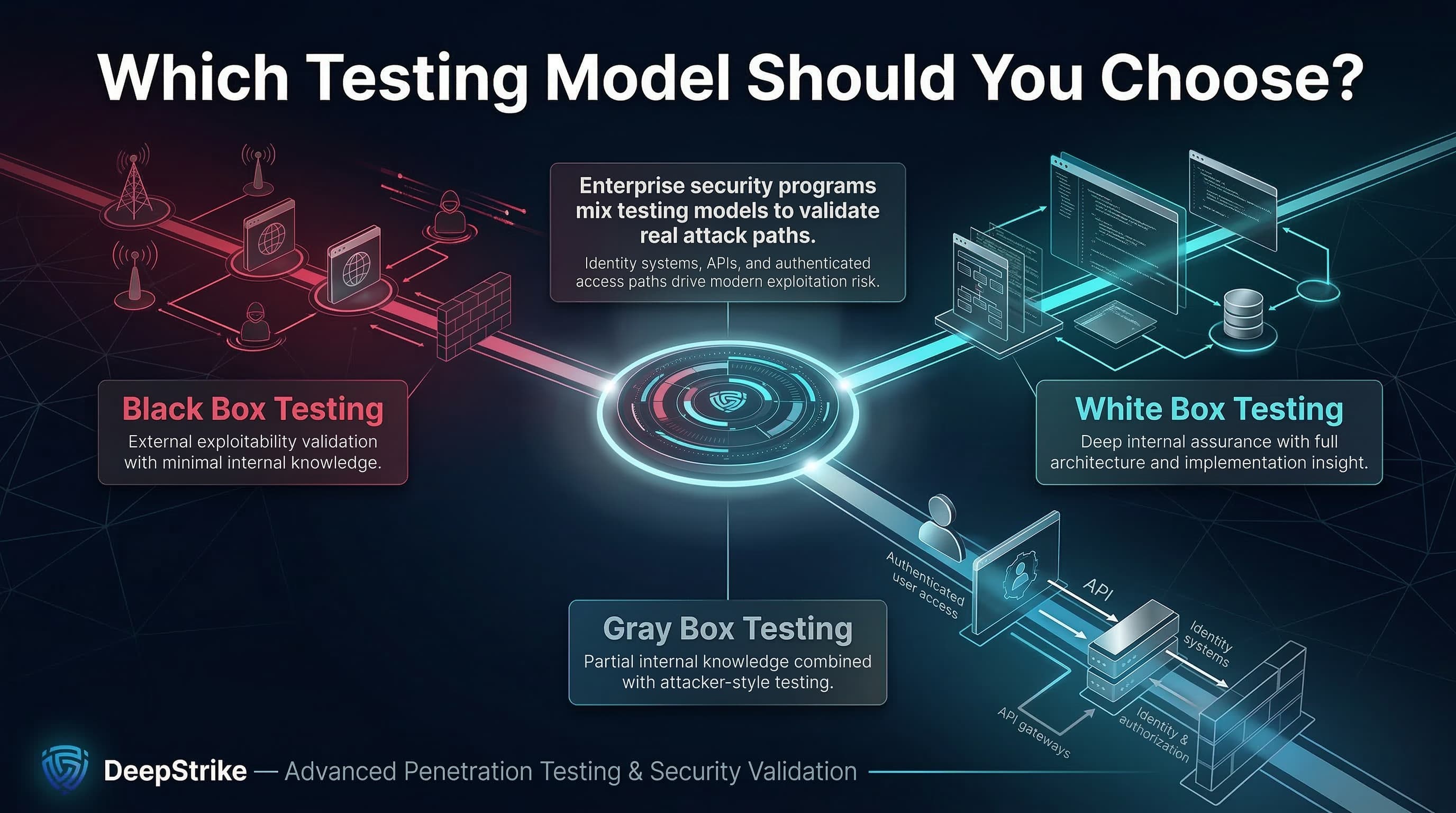

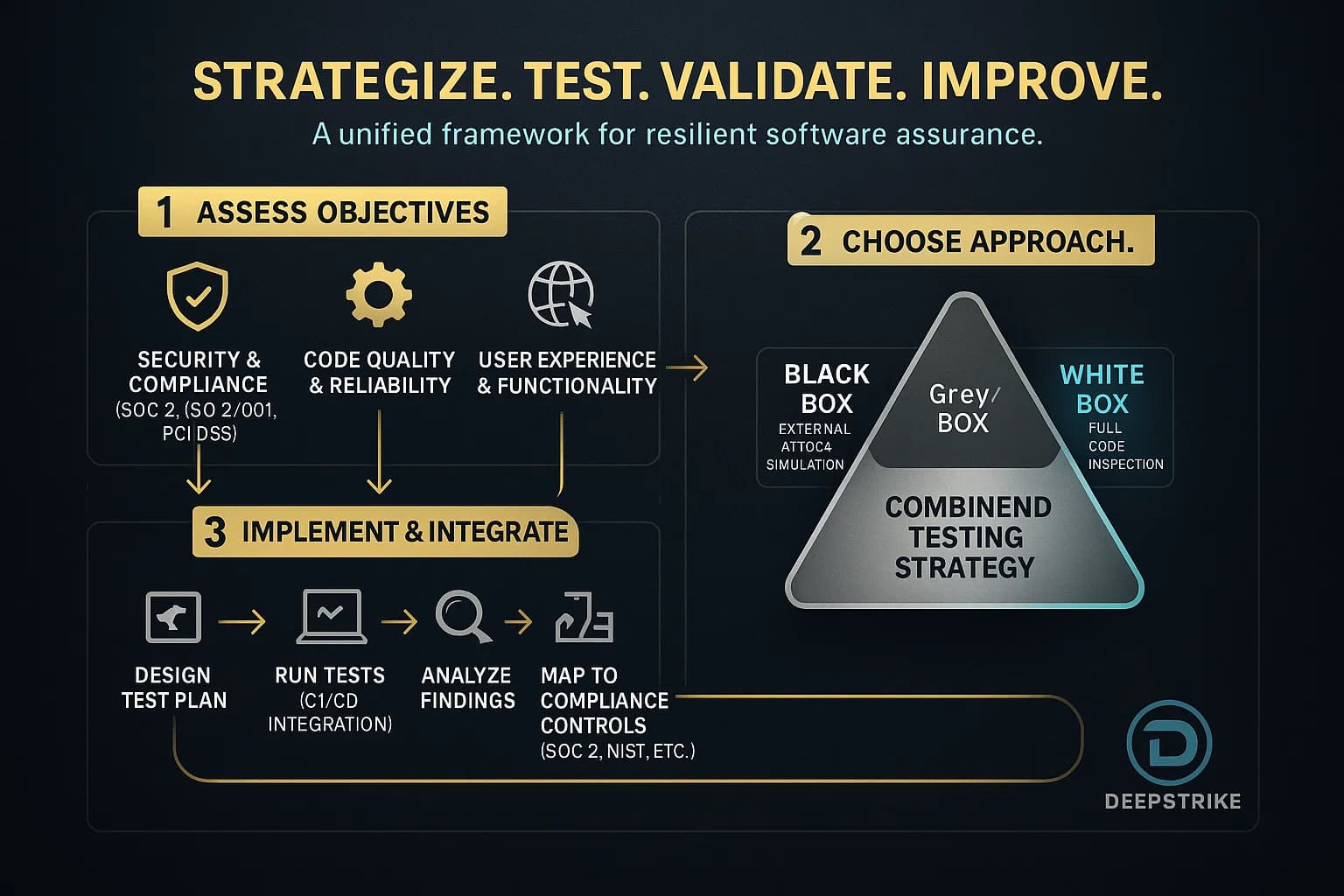

How to Choose and Implement Testing Strategies

1. Assess Objectives: Identify what you need to verify. If you have no code access e.g. third party API, black box is the only choice. If ensuring code quality and security is priority, use white box methods. Many teams use both: unit tests during development white box and acceptance/pentests at staging black box.
2. Gather Resources: For white box testing, equip testers with the codebase, documentation, and testing frameworks. For black box, prepare environment and test accounts. If budget or time is tight, leverage automated tools static scanners for white, fuzzers/automated scripts for black to cover more ground.
3. Design Tests: In black box, derive test cases from requirements and user stories e.g. boundary values, error paths. In white box, write unit tests covering every branch, and run code coverage tools statement/branch coverage, data flow. Include security checks for input validation and error conditions.
4. Run and Analyze: Execute tests. In white box, verify code paths were exercised and fix any uncovered lines. In black box, analyze any failed inputs or discovered vulnerabilities. If a black box test reveals a bug, re-run with code insight to diagnose it.
5. Iterate and Integrate: Combine findings. If white box misses a flaw e.g. missing encryption, black box should catch it. Likewise, use white box to confirm fixes. For Agile/DevOps teams, integrate both into CI/CD: run unit tests on commit and scheduled pentests, even quick automated scans before release.

For each project, define scope UI, APIs, network, etc., choose testers QA vs developers, decide on approach black/white/grey, set tools pytest, Selenium, Burp, etc., and map tests to compliance requirements e.g. SOC 2 TSC CC4.1 for periodic testing.

Common Myths and FAQs

• Myth: Black box testing is outdated because of automation.
• Reality: While automation aids testing, humans still need to design meaningful black box tests. Automated scanners can’t fully replace the creativity of a human tester simulating real attacks.
• Myth: White box testing finds every bug.
• Reality: Even 100% code coverage can’t catch missing features or misinterpreted requirements. White box and black box serve different goals, and one cannot fully substitute the other.
• Myth: Grey box is just an easier black box.
• Reality: Grey box provides targeted insights like admin creds to speed up tests while maintaining realistic attack scenarios. It’s a strategic choice, not a lazy test.
• Question: When should we use each?
• Answered by context use black box for external facing testing e.g. final acceptance, pentesting, white box for in development checks unit/integration testing, and grey box when simulating a compromised insider or privileged user.
• Question: Which yields higher ROI?
• A balanced program yields the best ROI. Catching bugs earlier via white box can save remediation costs, while black box tests find user impact issues that static analysis misses.
• Question: Do tools replace manual testing?
• No. Tools SAST, DAST, fuzzers are powerful, but they complement rather than replace human insight. For example, a DAST scan automated black box may find common flaws, but a skilled pentester can chain logic vulnerabilities across components.

For more on penetration testing strategies and costs, see our guides: What is Penetration Testing ?, penetration testing cost, and penetration testing for startups and SMBs. Also, learn how PTaaS and continuous testing platforms bring both worlds together in Penetration Testing as a Service PTaaS and continuous penetration testing platform offerings.

Black box and white box testing are two pillars of software quality and security. Black box testing ensures that the software does what it should from the user’s perspective, while white box testing ensures the software is built correctly under the hood.

In 2025’s threat landscape, relying on only one perspective is risky. A modern testing strategy uses both code level checks plus end to end tests.

Ready to strengthen your defenses? The threats of 2025 demand more than just awareness; they require readiness. If you’re looking to validate your security posture, identify hidden risks, or build a resilient defense strategy, DeepStrike is here to help. Our team of experts provides clear, actionable guidance to protect your business.

Explore our penetration testing services to see how we can uncover vulnerabilities before attackers do. Drop us a line we’re always ready to dive in.

About the AuthorMohammed Khalil is a Cybersecurity Architect at DeepStrike, specializing in advanced penetration testing and offensive security. With certifications including CISSP, OSCP, and OSWE, he has led red team engagements for Fortune 500 companies, focusing on cloud security, application vulnerabilities, and adversary emulation. His work involves dissecting complex attack chains and developing resilient defense strategies for clients in finance, healthcare, and technology.

FAQs People Also Ask

• What is the difference between black box and white box testing?

Black box testing examines software as an external user, without seeing the code; it focuses on inputs and expected outputs. White box testing reviews the internal code and logic, aiming to execute all paths and conditions. The key difference is knowledge of internals and test focus.

• When should I use black box vs white box testing?

Use black box testing when validating functionality and user requirements system or acceptance tests. Use white box testing during development unit/integration tests or security code reviews to verify code quality and logic. Many teams use both: e.g. developers write white box unit tests, then QA or pentesters perform black box tests.

• Is grey box testing better than black or white box?

Grey box is not strictly better, but it provides a middle ground. It gives testers limited internal info like credentials to speed up targeted testing. It can be more efficient than pure black box and more realistic than full white box. Use grey box when you want to simulate insider threats or when partial system knowledge is available.

• Can we automate both testing methods?

Yes. Black box tests are often automated via UI/API test suites, fuzzers, or scanners. White box tests are automated as unit tests and static analysis. Automation boosts speed, but human oversight is still needed to design meaningful tests and interpret results.

• How do penetration tests fit into this?

A penetration test can be conducted in a black box, white box, or grey box style. A black box pentest uses no insider info mirroring an external attacker. A white box pentest provides the tester with full system info like source code for an in depth review. Choosing the style affects scope, time, and cost. For details, see our vulnerability assessment vs penetration testing guide.
